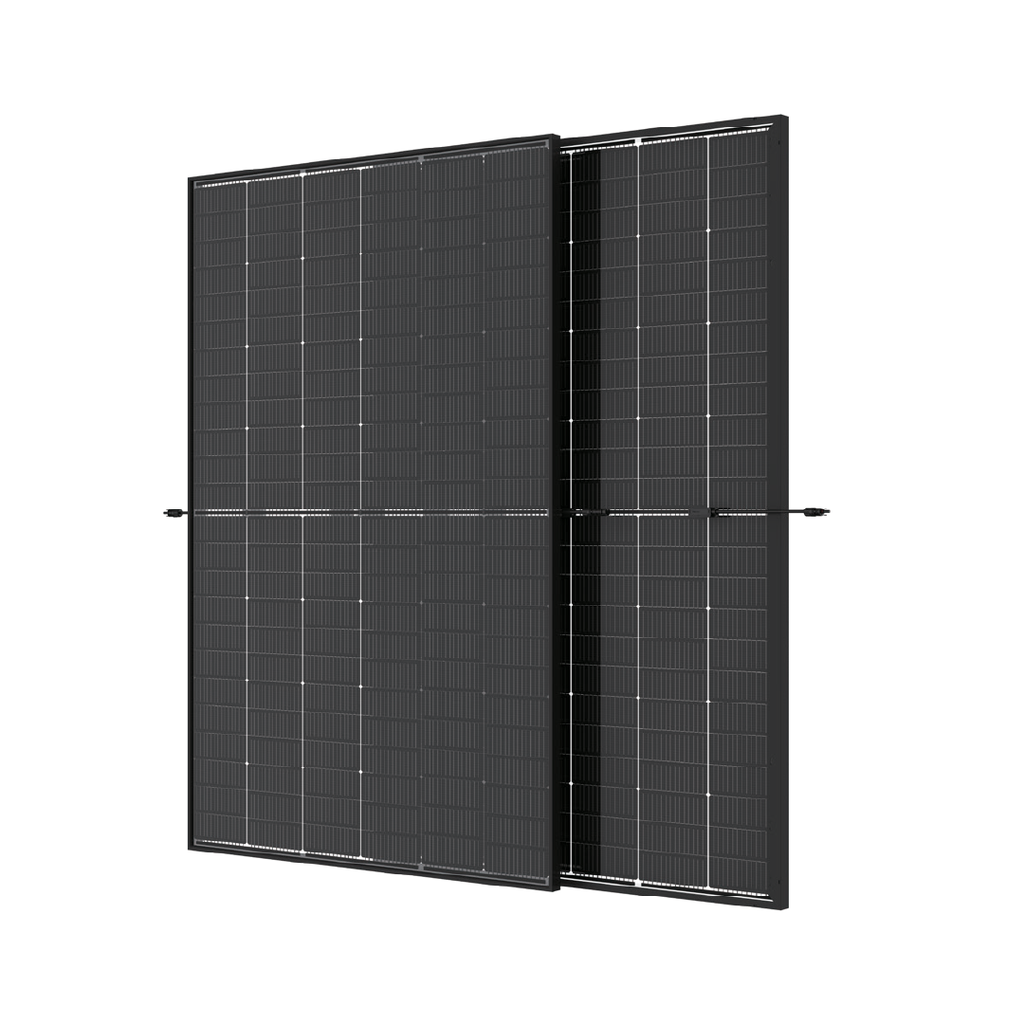

General Information:

• Model: Trina Solar Vertex S+ 425W
• Type: Monocrystalline, Bifacial (Dual Glass)
• Cell Technology: N-Type TOPCon
• Dimensions: ~1762 × 1134 × 30 mm
• Weight: ~21.0 kg

Electrical Specifications (STC – Standard Test Conditions):

• Maximum Power (Pmax): 425W
• Module Efficiency: ~21.8%
• Open Circuit Voltage (Voc): ~50.5V
• Short Circuit Current (Isc): ~10.75A
• Maximum Power Voltage (Vmp): ~42.5V
• Maximum Power Current (Imp): ~10.0A

Temperature Characteristics:

• Temperature Coefficient of Pmax: ~ -0.30%/°C
• Operating Temperature Range: -40°C to +85°C

Mechanical & Durability:

• Frame: Anodized aluminum alloy
• Glass: Dual glass (high durability)
• Wind Load Resistance: Up to 4000 Pa
• Snow Load Resistance: Up to 6000 Pa
• Junction Box: IP68, three bypass diodes

Certifications & Warranty:

• Product Warranty: 25 years
• Performance Warranty: 30 years (80% of initial output)
• Certifications: IEC 61215, IEC 61730, UL 61730

General Specifications:

• Model: Trina Solar Vertex TSM-DE19
• Power Output: 600W
• Efficiency: ~21.2%
• Cell Type: Monocrystalline PERC
• Cell Configuration: 210mm silicon wafers, multi-busbar technology
• Dimensions: ~2172 × 1303 × 35 mm
• Weight: ~31.5 kg

Performance:

• Maximum Power Voltage (Vmp): ~44.5V
• Maximum Power Current (Imp): ~13.49A
• Open Circuit Voltage (Voc): ~53.3V
• Short Circuit Current (Isc): ~14.11A

Durability & Reliability:

• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1500V DC
• Snow Load Resistance: 5400 Pa
• Wind Load Resistance: 2400 Pa
• IP Rating: IP68 junction box for excellent waterproofing

Features & Benefits:

✅ High Power Output – Ideal for utility-scale and large rooftop projects
✅ Multi-busbar & 210mm Cells – Improves light capture and current collection
✅ High Voltage Compatibility – Supports 1500V systems for lower BOS costs
✅ Excellent Low-light Performance – Works efficiently even on cloudy days

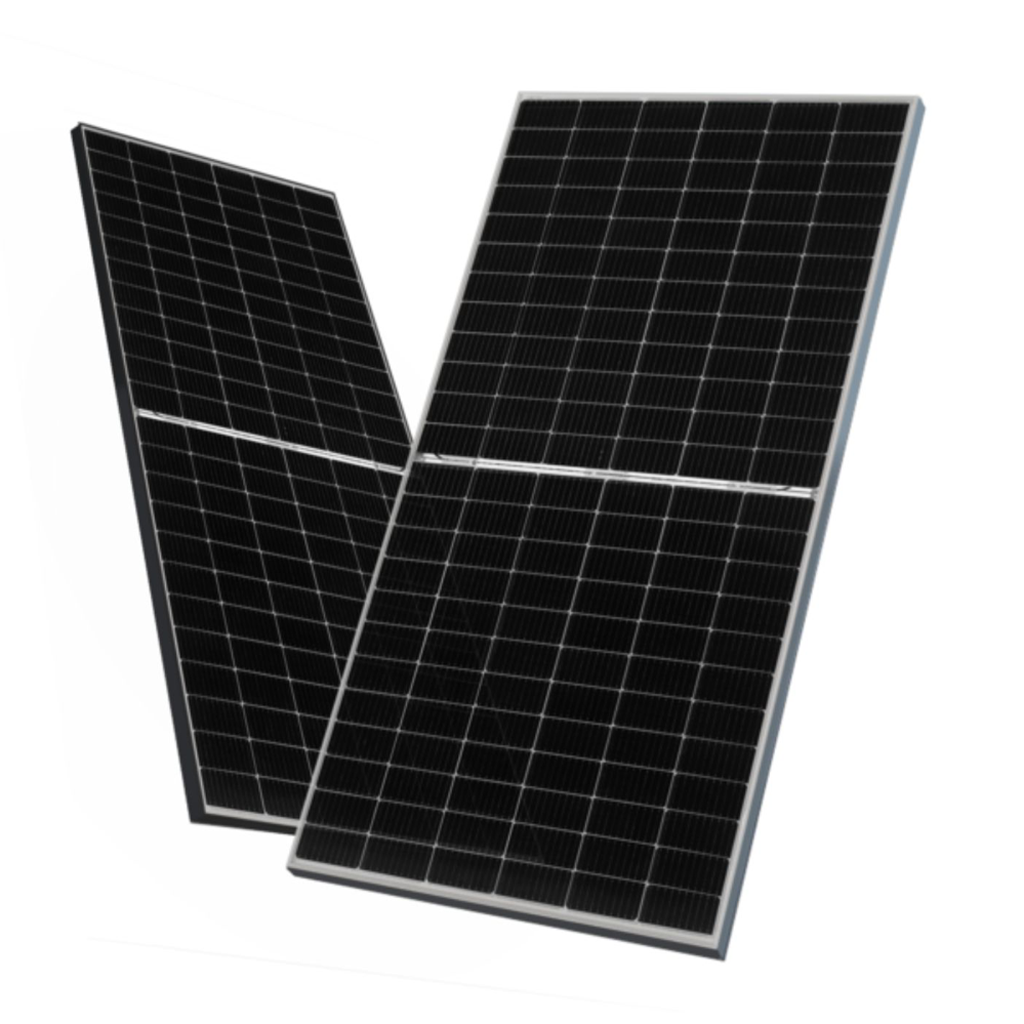

Electrical Specifications

• Model: JKM475N-60HL4-V
• Rated Power (Pmax): 475W
• Efficiency: ~22.0%
• Open Circuit Voltage (Voc): ~52V
• Short Circuit Current (Isc): ~11.50A
• Maximum Power Voltage (Vmp): ~43V
• Maximum Power Current (Imp): ~11.05A

Mechanical Specifications

• Cell Type: N-Type Mono-crystalline
• Number of Cells: 156 (60-cell equivalent)
• Dimensions: ~1903 × 1134 × 30 mm
• Weight: ~22 kg
• Glass: 3.2mm anti-reflective tempered glass
• Frame: Anodized aluminum alloy

Operating Conditions

• Maximum System Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C
• Maximum Series Fuse Rating: 25A
• Temperature Coefficient (Pmax): -0.30%/°C
• Temperature Coefficient (Voc): -0.25%/°C

Certifications & Features

• High efficiency with N-Type technology (better performance in low-light conditions)
• Bifacial option available for additional energy gain
• PID resistance for long-term reliability
• Certified for IEC 61215, IEC 61730, and resistance to harsh weather conditions
